Electrical & Civil EPC

Electrical Utility Shifting, Mecon Roundabout Flyover

Electrical utility works for L&T's Mecon Roundabout Flyover in Ranchi, certified complete by the project manager with quality recorded as good.

Contract value
₹7.14 crore
Work order
LE/LE22M630/WOD/23/000043
Location
Mecon Roundabout Flyover, Ranchi, Jharkhand

Electrical utility works for the Mecon Roundabout Flyover in Ranchi, executed as a subcontractor to Larsen & Toubro Limited under job number LE22M630.

What the certificate says

L&T issued a completion certificate on 12 March 2026 confirming that Ranisons “has completed the works assigned through below mentioned work orders in our project in all respects”, and that the works “were executed as per specifications, requirements and quality of work found to be Good”. It is signed by Tej Bahadur Singh, Project Manager for the flyover project, and is published in full on our credentials page.

The two figures, and which one we publish

The certificate records both a gross work order value of ₹9,03,17,318 and a gross work done value of ₹7,14,08,991. We publish the lower figure — the work actually executed and certified — because that is what we did. Quoting the order value would overstate it by nearly ₹1.9 crore.

The account is closed: against a basic bill of ₹6,05,16,094 plus GST, the net payable of ₹6,70,32,995 was settled in full, with nil balance outstanding.

Why it matters

This is the largest single contract on this site, and it was won as a subcontractor to one of India’s largest construction firms — which means our documentation, safety compliance and billing had to satisfy L&T’s own systems, not just a utility’s. For a buyer running a pre-qualification, that is a different order of scrutiny from a self-certified claim.

360° · Multi-Angle Inspection

Site Records & Multi-Angle Exploration

Documented project photography from engineering survey through completion.

4 Viewpoints on Record

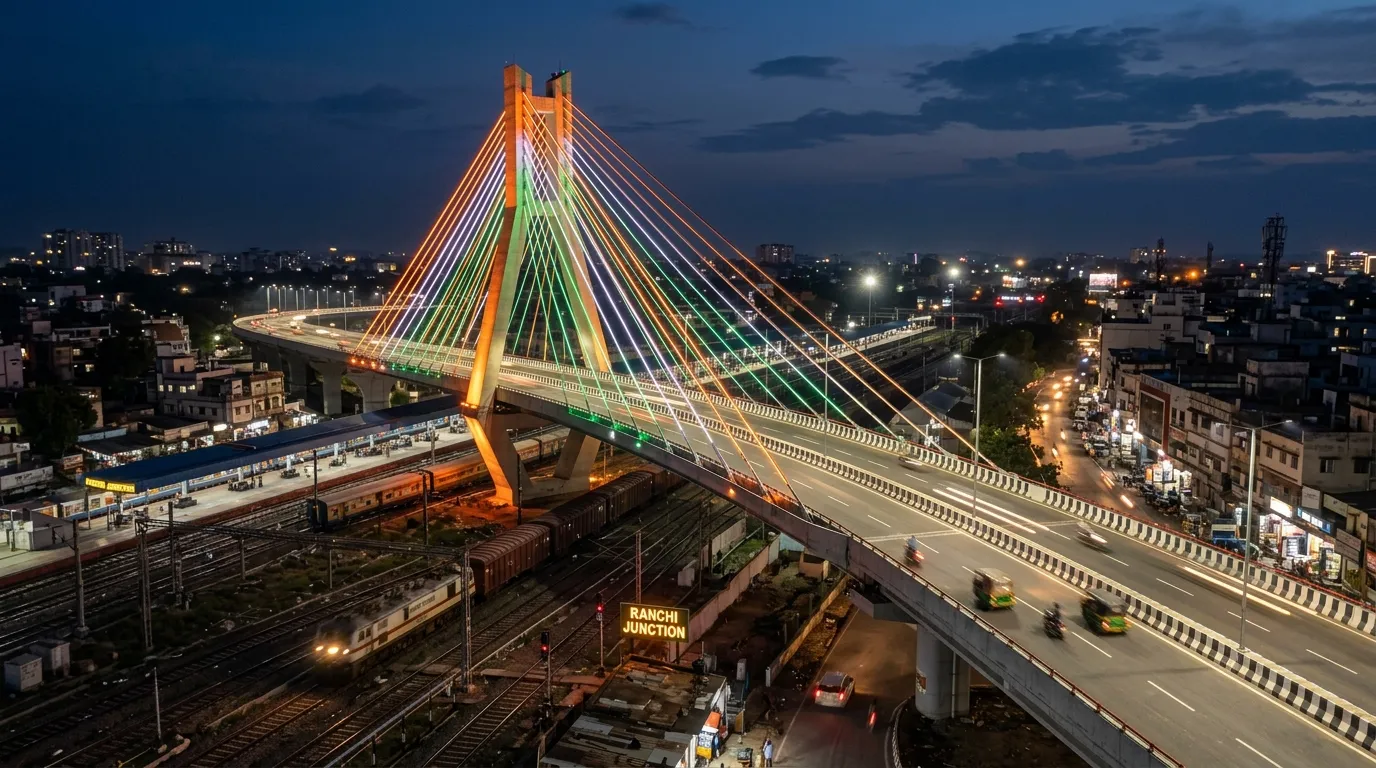

Siramtoli-Mecon cable-stayed flyover over Ranchi railway tracks illuminated at night with tricolor lighting
Angle 01 / 04

Siramtoli-Mecon Cable-Stayed Flyover at Ranchi Junction: Night illumination along high-tensile cable stays and 4-lane elevated carriageway.

Full Screen

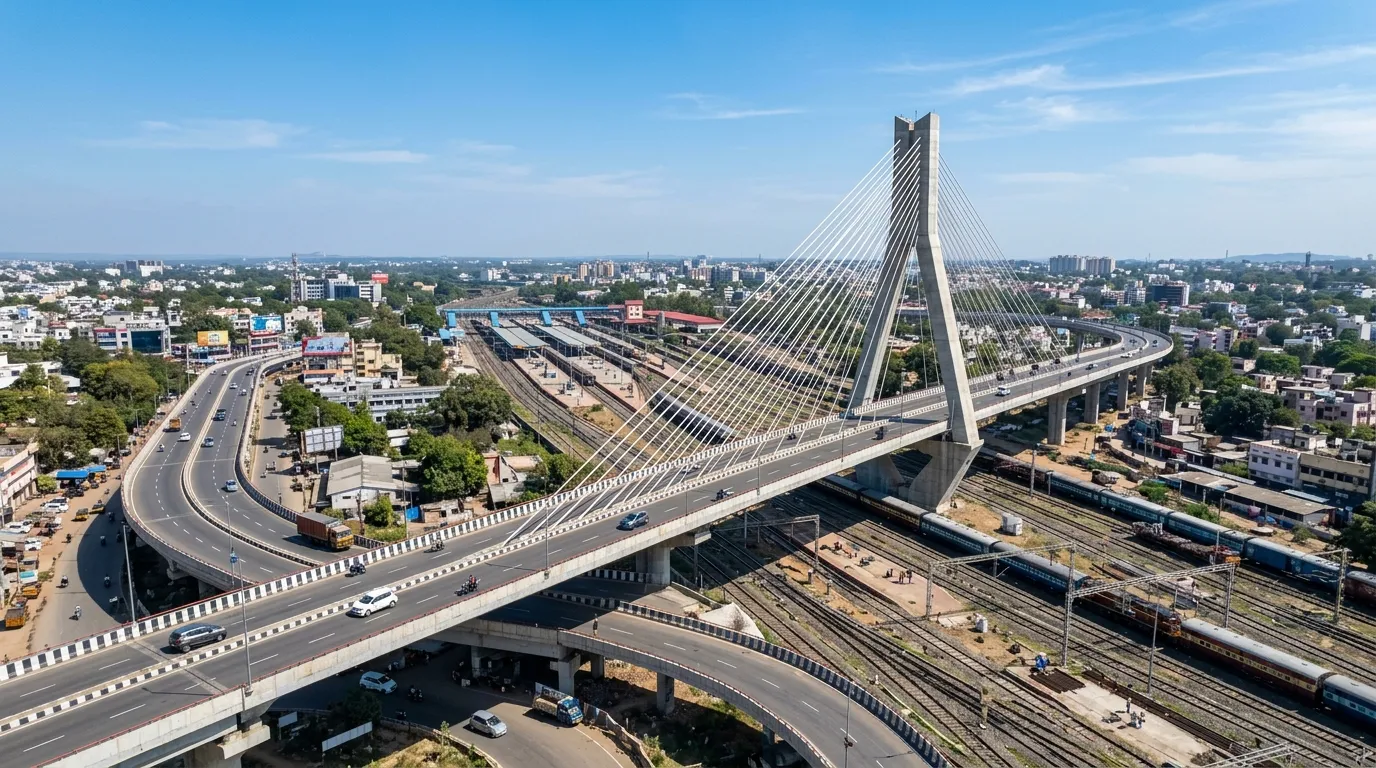

Daylight aerial drone view of the 2.34 km elevated flyover corridor curving above Ranchi railway station
Angle 02 / 04

Daylight aerial view of the completed 2.34 km Siramtoli-Mecon flyover corridor above the railway tracks.

Full Screen
Highway street lighting and utility corridor along the elevated approach
Angle 03 / 04

Utility corridor and median lighting along the elevated flyover approach alignment.

Full Screen
High-tension XLPE cable drums staged for underground utility diversion
Angle 04 / 04

Heavy XLPE power cable drums deployed for underground utility diversion along the flyover corridor.

Full Screen

Individual Frame Inspection (4 captures)

  • Siramtoli-Mecon cable-stayed flyover over Ranchi railway tracks illuminated at night with tricolor lighting

    Siramtoli-Mecon Cable-Stayed Flyover at Ranchi Junction: Night illumination along high-tensile cable stays and 4-lane elevated carriageway.

  • Daylight aerial drone view of the 2.34 km elevated flyover corridor curving above Ranchi railway station

    Daylight aerial view of the completed 2.34 km Siramtoli-Mecon flyover corridor above the railway tracks.

  • Highway street lighting and utility corridor along the elevated approach

    Utility corridor and median lighting along the elevated flyover approach alignment.

  • High-tension XLPE cable drums staged for underground utility diversion

    Heavy XLPE power cable drums deployed for underground utility diversion along the flyover corridor.

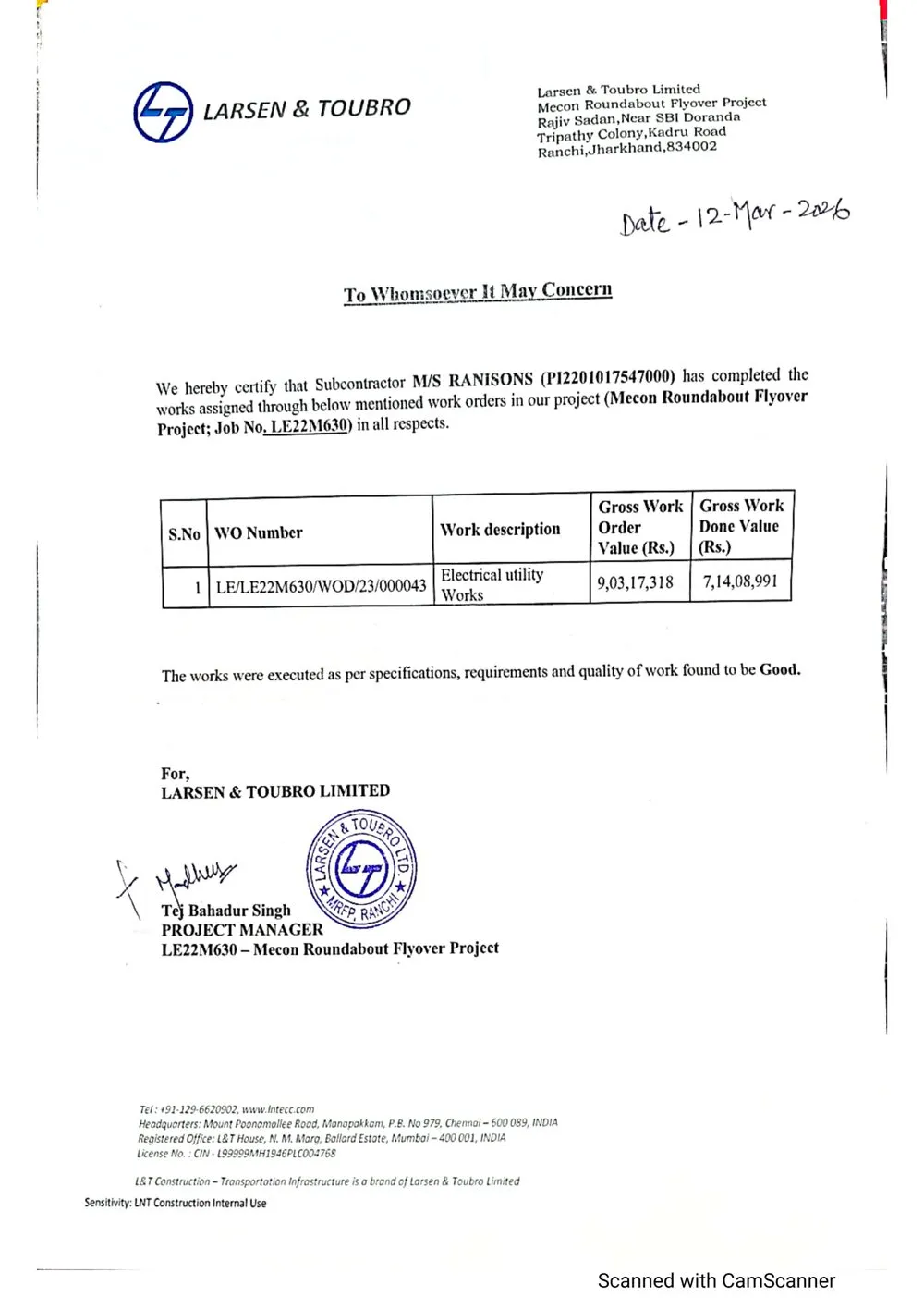

Completion certificate

Issued by Larsen & Toubro Limited on completion. Published in full — read it before you take our word for anything on this page.

Completion certificate from Larsen & Toubro Limited for electrical utility works on the Mecon Roundabout Flyover project, RanchiRead

Larsen & Toubro Limited

Completion Certificate — Mecon Roundabout Flyover

Electrical utility works, ₹7,14,08,991 certified complete on 12.03.2026. Quality of work recorded as "Good".

Download PDF

The corridor, end to end

What we moved, and what stands there now

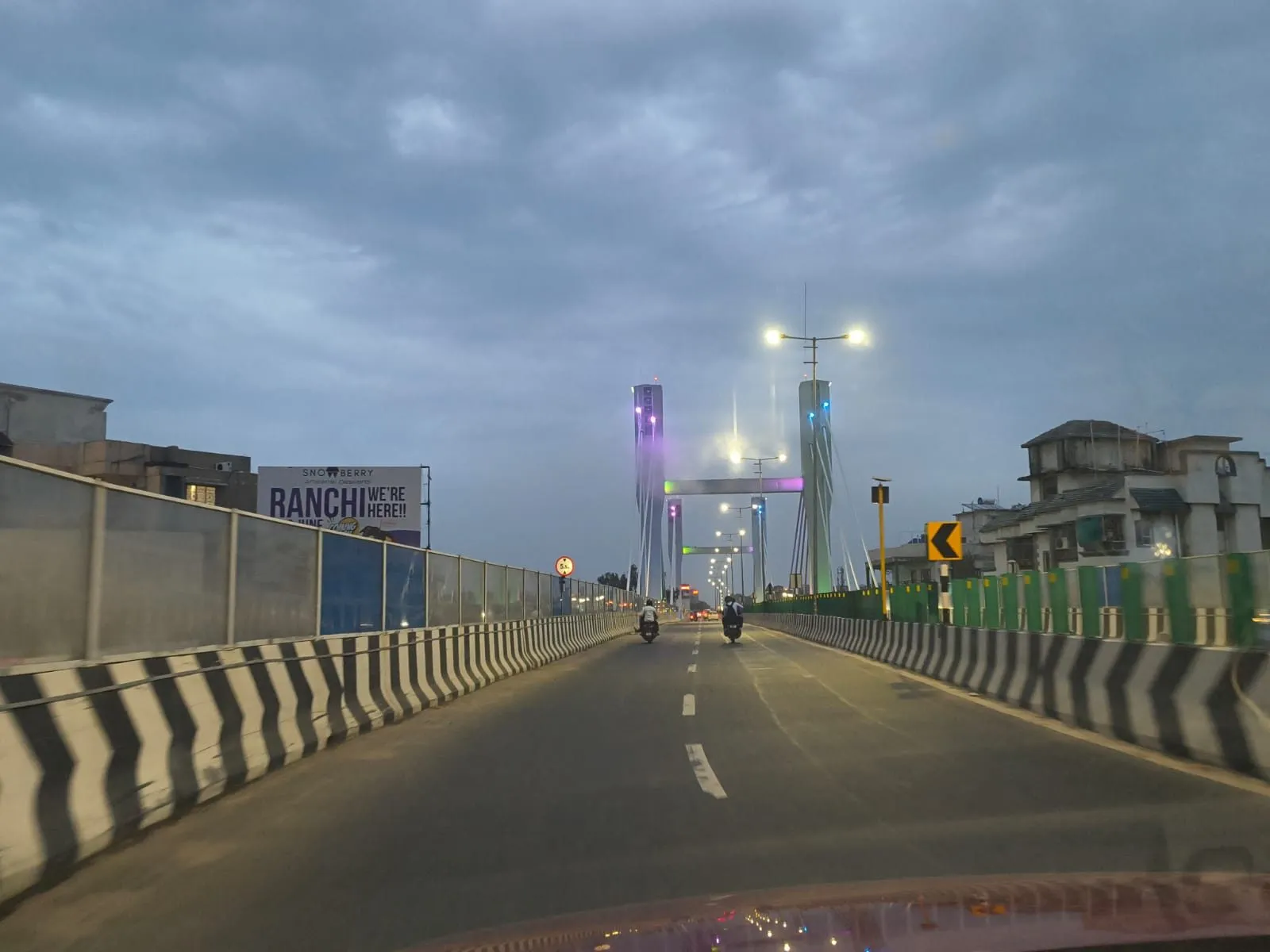

The completed flyover at dusk, its cable-stayed pylons and deck lighting energised
  1. Before

    The existing 11 kV line ran on poles along the carriageway, directly over the alignment the flyover needed.

  2. Diversion

    Trench opened, XLPE cable drawn in, and the overhead conductors brought down and transferred underground.

  3. After

    Corridor clear, deck built over it, and the street lighting and pylon lighting we installed energised.

Photographed on site

  • The completed flyover at dusk, its cable-stayed pylons and deck lighting energised

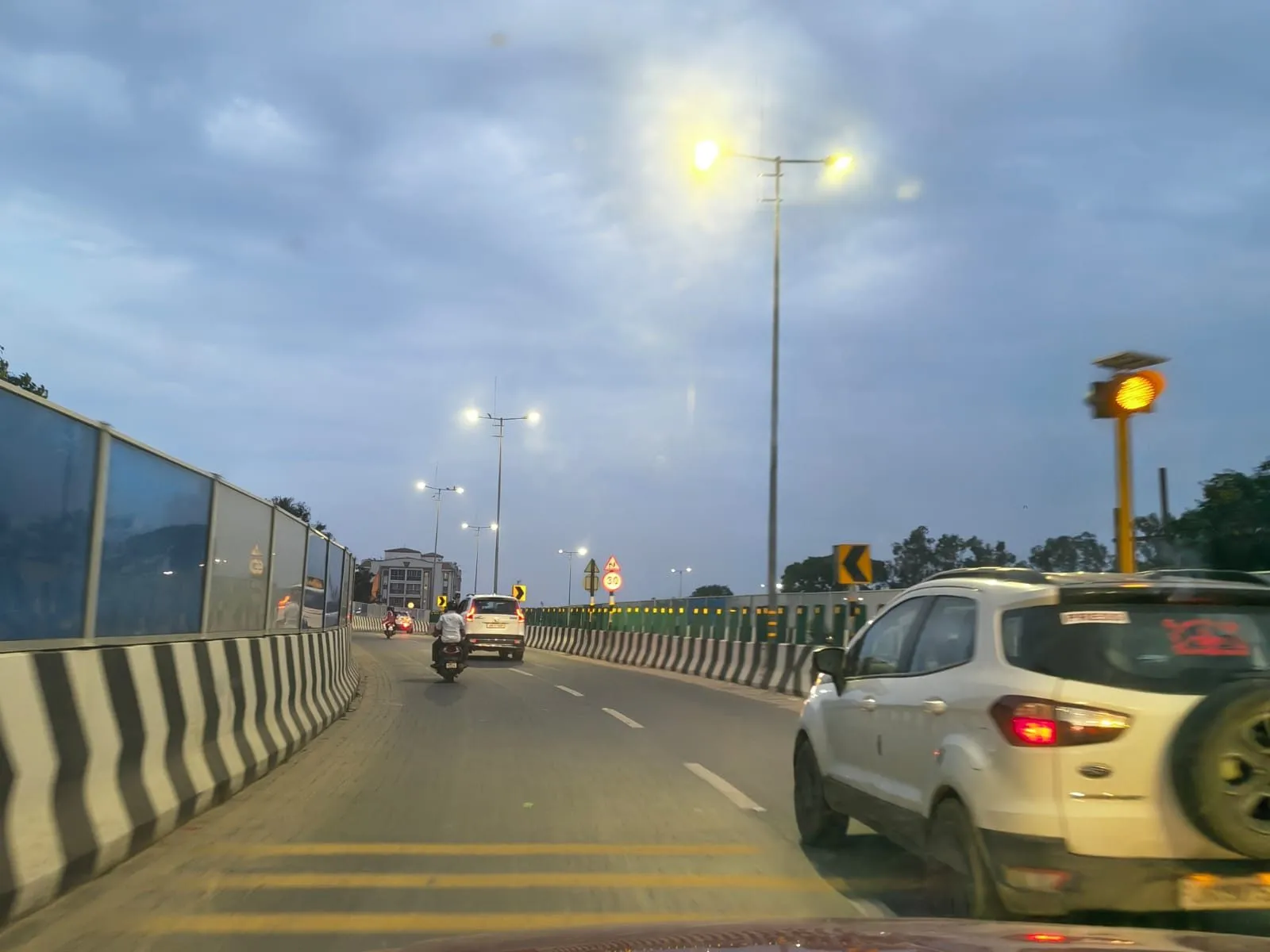

  • Street lighting columns along the finished corridor, lit at dusk
  • LT switchgear panels installed and lined up in the substation building
  • XLPE cable drums on site before the overhead line was taken underground
