33/11 kV Power Substation, Jharkhand Mega Food Park

Turnkey supply, installation, testing and commissioning of a 33/11 kV power substation serving the food park's processing and cold-storage load.

Contract value
₹4.73 crore
Work order
JMFPPL/ELE/0413/02
Location
Getalsud, Ranchi, Jharkhand

Ranisons was awarded the complete electrical package for the 33/11 kV power substation serving Jharkhand Mega Food Park’s processing block and cold-storage facilities at Getalsud, Ranchi.

The scope covered supply, installation, testing and commissioning of the substation, executed under the supervision of the Jharkhand State Electricity Board. A companion contract covered the substation’s civil works — control-room building, equipment foundations and yard — at a further ₹90 lakh.

The same client subsequently awarded us the incoming 33 kV line from P/S/S Sikidri, street lighting for the campus, a 1×1000 kVA distribution substation for a new cold store at Lohardaga, and the warehouse and dormitory buildings — bringing the total value of work executed for Jharkhand Mega Food Park to over ₹18 crore.

360° · Multi-Angle Inspection

Site Records & Multi-Angle Exploration

Documented project photography from engineering survey through completion.

3 Viewpoints on Record

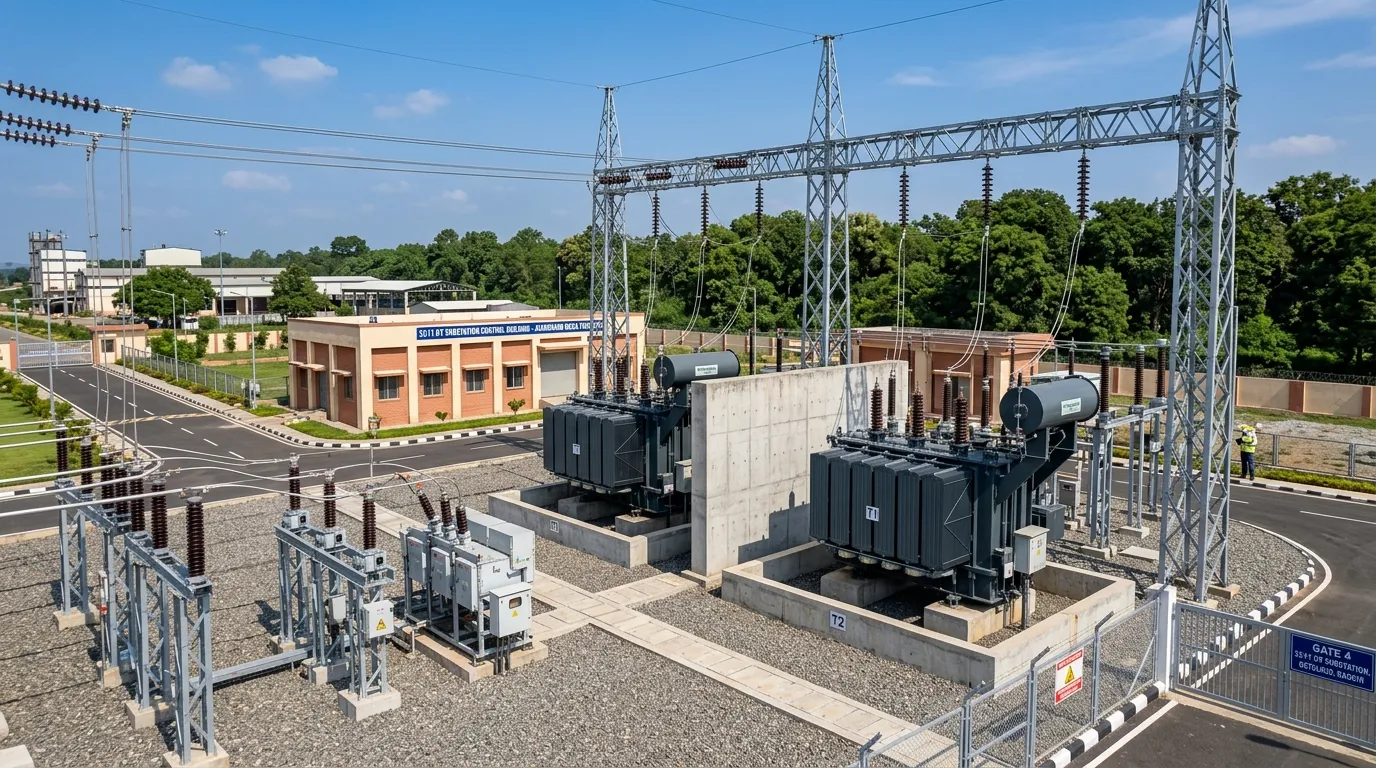

33/11 kV electrical power substation with dual transformers and switchyard gantry at Jharkhand Mega Food Park Getalsud
Angle 01 / 03

Jharkhand Mega Food Park, Getalsud: 33/11 kV 2x5 MVA dedicated power substation switchyard and transformer plinths.

Full Screen

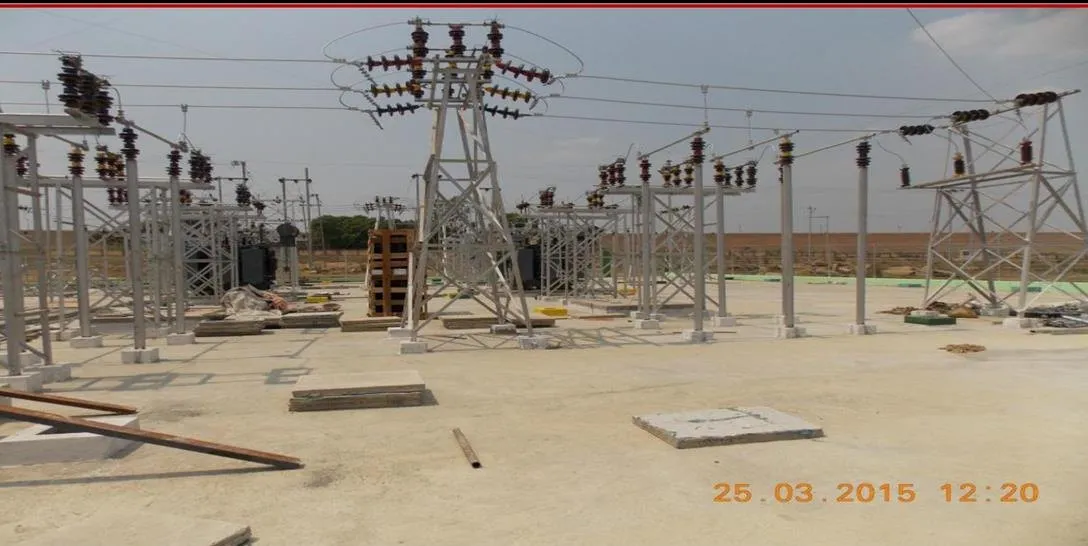

Outdoor 33 kV switchyard gantry and busbar structure at Getalsud campus
Angle 02 / 03

Outdoor 33 kV switchyard gantry and busbar structure at Getalsud campus.

Full Screen
Power transformer bay with concrete blast separation wall and gravel soak pit
Angle 03 / 03

Power transformer bay with concrete blast separation wall and gravel soak pit.

Full Screen

Individual Frame Inspection (3 captures)

  • 33/11 kV electrical power substation with dual transformers and switchyard gantry at Jharkhand Mega Food Park Getalsud

    Jharkhand Mega Food Park, Getalsud: 33/11 kV 2x5 MVA dedicated power substation switchyard and transformer plinths.

  • Outdoor 33 kV switchyard gantry and busbar structure at Getalsud campus

    Outdoor 33 kV switchyard gantry and busbar structure at Getalsud campus.

  • Power transformer bay with concrete blast separation wall and gravel soak pit

    Power transformer bay with concrete blast separation wall and gravel soak pit.

Open original

Built and charged

A substation, from levelled ground to live busbar

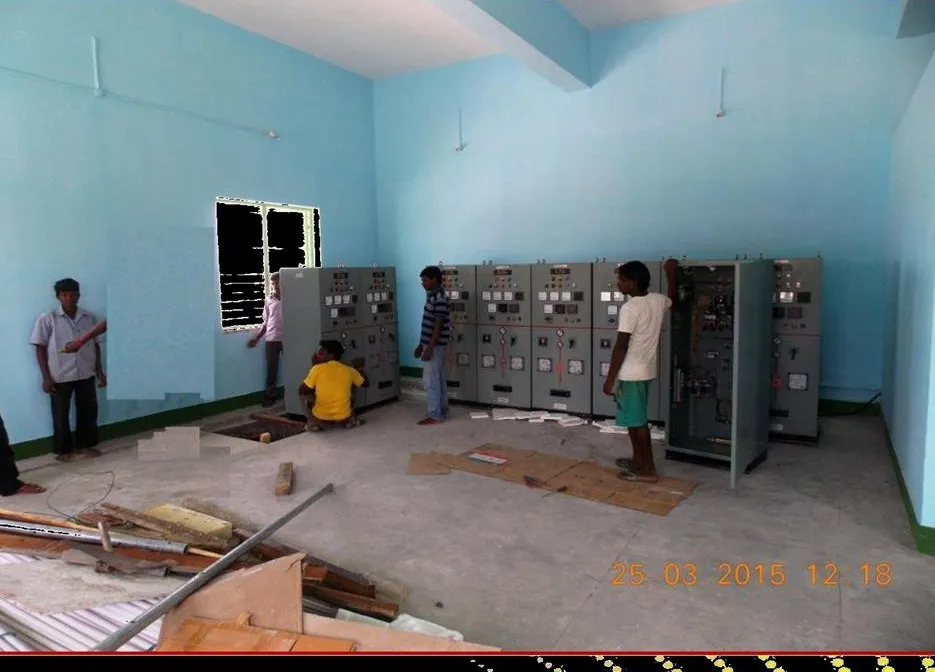

LT switchgear panels installed and lined up in the substation building

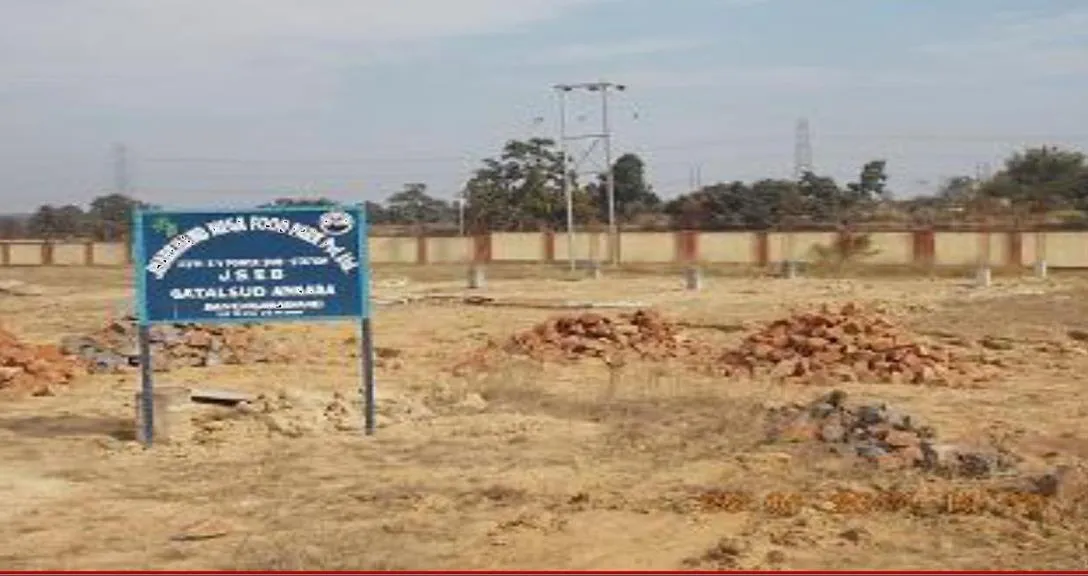

  1. Civil

    Yard levelled, equipment foundations, transformer bund, cable trenches and the control room building.

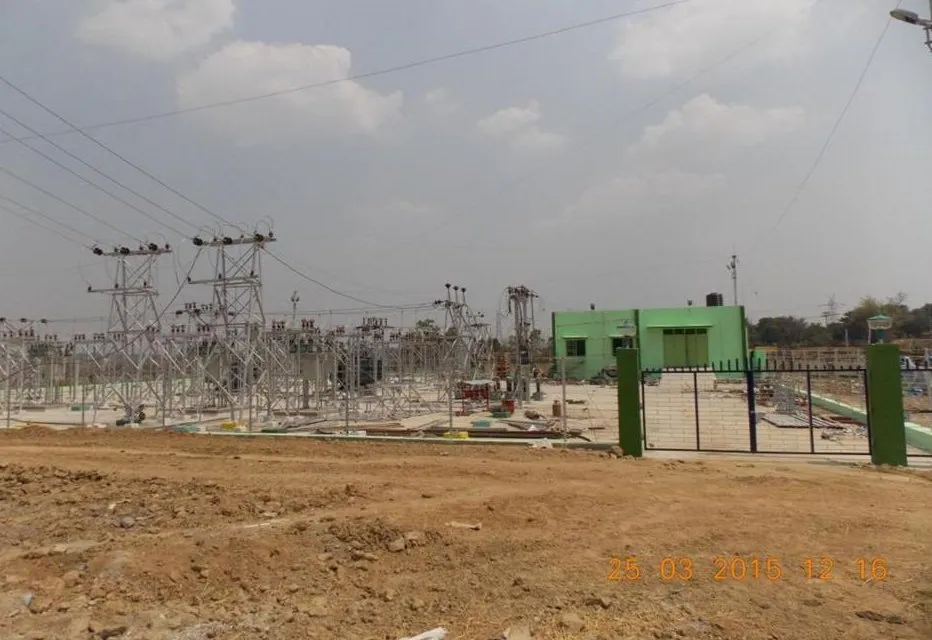

  2. Erection

    Gantries and bus structures erected, transformers landed on their plinths and coupled up.

  3. Equipment

    Isolators, breakers, CTs and lightning arresters installed bay by bay, then bussed together.

  4. Commissioning

    Protection set and coordinated, insulation tested, and the yard charged under utility supervision.

Photographed on site

  • LT switchgear panels installed and lined up in the substation building

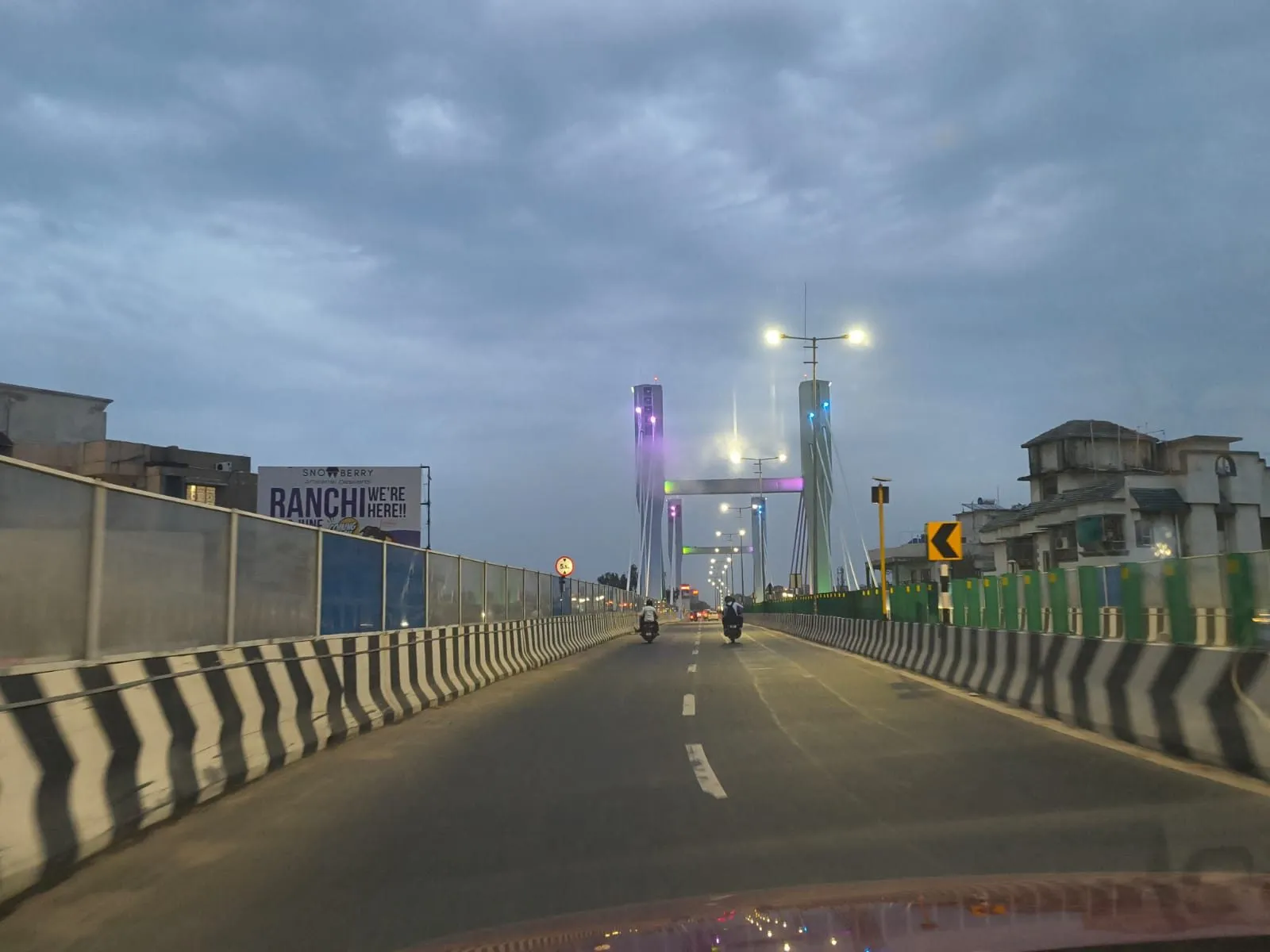

  • Lighting installed on the corridor, energised at dusk
